STM32芯片實物圖

STM32芯片官方參考文檔

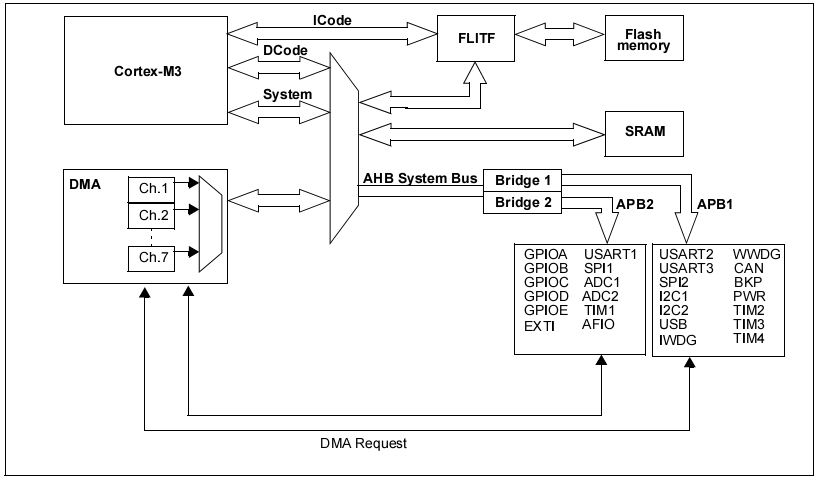

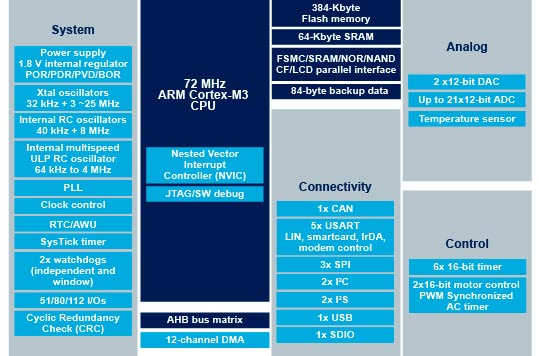

STM32系統結構

系統的主要部分包括：

四個驅動單元：

- Cortex-M3 內核指令總線 (I-bus)

數據總線 (D-bus)

以及系統總線 (S-bus)

- GP-DMA(通用DMA)

三個被動單元：

- 內部 SRAM

- 內部閃存存儲器

- AHB 到 APB 橋 (AHB2APBx)該橋用來連接所有的APB 設備這些通過一個多級的AHB 總線構架相互連接

ICode 總線

該總線將 Cortex-M3 內核的指令總線與閃存存儲器指令接口相連接。指令預取操作在該總線上進行。

DCode 總線

該總線將Cortex-M3內核的DCode總線與閃存存儲器的數據接口相連接(常量加載和調試訪問)。

系統總線

該總線將 Cortex-M3 內核的系統總線（外設總線）連接到一個總線矩陣，總線矩陣協調著內核和DMA 間的訪問。

DMA 總線

該總線將DMA的AHB主機接口連接到一個總線矩陣，總線矩陣協調著CPU的DCode和DMA到SRAM、閃存和外設的訪問。

總線矩陣

此總線矩陣協調內核系統總線和DMA主控總線之間的訪問仲裁。此仲裁利用輪換算法。此總線矩陣由三個驅動部件(CPU的DCode、系統總線和DMA總線)和三個被動部件(閃存存儲器接口、SRAM和AHB2APB橋)構成。

為了允許DMA 訪問，AHB 外設通過一個總線矩陣連接到系統總線。

AHB/APB 橋 (APB)

兩個 AHB/APB 橋在AHB 和兩個APB 總線之間提供完全同步的連接。APB1 被限制在36 MHz， APB2 工作在全速狀態 (根據設備的不同可以達到72 MHz)。

存儲器結構

程序存儲器、數據存儲器、寄存器和 I/O 端口被組織到一個4G 字節的線性地址空間。

這些字節在存儲器小端格式編碼，在小端格式中，一個字中最低地址的字節為該字的最低位字節，最高地址的字節為最高位字節。

可尋址的存儲器空間被分為8 個512MB 的主塊。

所有未分配給片上存儲器或外設的存儲區域被視為是保留的。

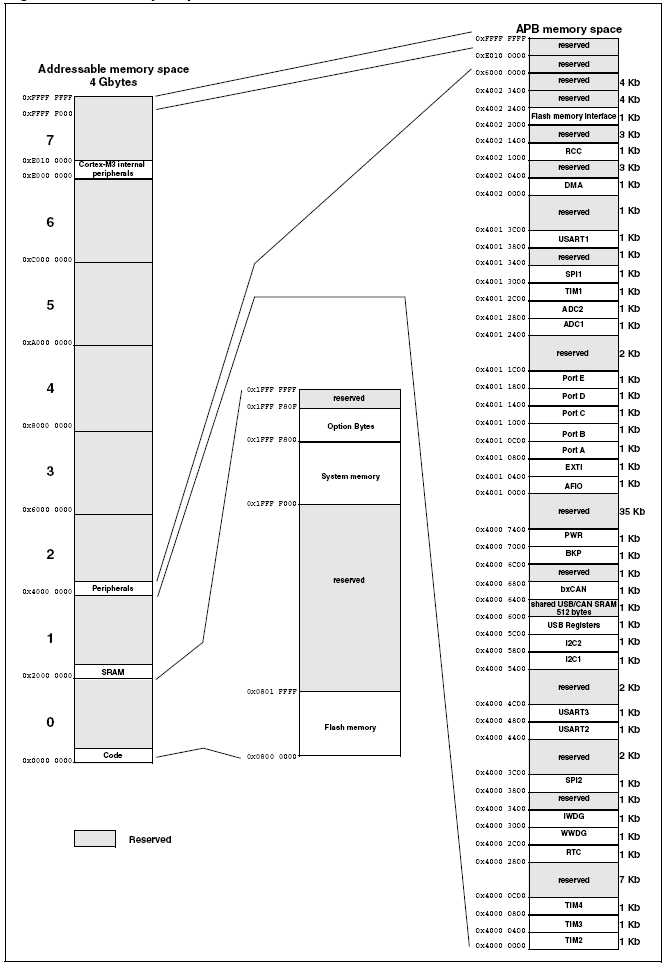

存儲器映射

邊界地址 外設 總線

0x4002 2400 - 0x4002 3FFF 保留

AHB

0x4002 2000 - 0x4002 23FF 閃存存儲器接口

0x4002 1400 - 0x4002 1FFF 保留

0x4002 1000 - 0x4002 13FF 復位和時鐘控制RCC

0x4002 0400 - 0x4002 0FFF 保留

0x4002 0000 - 0x4002 03FF DMA

0x4001 3C00 - 0x4001 3FFF 保留

APB2

0x4001 3800 - 0x4001 3BFF USART1

0x4001 3400 - 0x4001 37FF 保留

0x4001 3000 - 0x4001 33FF SPI 1

0x4001 2C00 - 0x4001 2FFF TIM1 定時器

0x4001 2800 - 0x4001 2BFF ADC2

0x4001 2400 - 0x4001 27FF ADC1

0x4001 2000 - 0x4001 1FFF 保留

0x4001 1800 - 0x4001 1BFF GPIO 端口 E

0x4001 1400 - 0x4001 17FF GPIO 端口 D

0x4001 1000 - 0x4001 13FF GPIO 端口 C

0x4001 0C00 - 0x4001 0FFF GPIO 端口 B

0x4001 0800 - 0x4001 0BFF GPIO 端口 A

0x4001 0400 - 0x4001 07FF EXIT

0x4001 0000 - 0x4001 03FF AFIO

0x4000 8000 - 0x4000 77FF 保留

APB1

0x4000 7000 - 0x4000 73FF 電源控制（PWR）

0x4000 6C00 - 0x4000 6FFF 備份寄存器（BKP）

0x4000 6800 - 0x4000 6BFF 保留

0x4000 6400 - 0x4000 67FF bxCAN

0x4000 6000 - 0x4000 63FF 共享的USB/CAN SRAM

512 字節

0x4000 5C00 - 0x4000 5FFF USB 寄存器

0x4000 5800 - 0x4000 5BFF I2C2

0x4000 5400 - 0x4000 57FF I2C1

0x4000 5000 - 0x4000 4FFF 保留

0x4000 4800 - 0x4000 4BFF USART3

0x4000 4400 - 0x4000 47FF USART2

0x4000 4000 - 0x4000 3FFF 保留

0x4000 3800 - 0x4000 3BFF SPI2

0x4000 3400 - 0x4000 37FF 保留

0x4000 3000 - 0x4000 33FF 獨立的看門狗（IWDG）

0x4000 2C00 - 0x4000 2FFF 窗口看門狗（WWDG）

0x4000 2800 - 0x4000 2BFF RTC

0x4000 2400 - 0x4000 0FFF 保留

0x4000 0800 - 0x4000 0BFF TIM4 定時器

0x4000 0400 - 0x4000 07FF TIM3 定時器

0x4000 0000 - 0x4000 03FF TIM2 定時器

嵌入式SRAM

STM32F10x 內置20K 字節的靜態SRAM，可以以字節、半字（16 位）、字(32 位)的方式訪問，SRAM 的起始地址為0x2000 0000。

位段

TM32F10x 里，外設寄存器和SRAM 都被映射到一個位段區里，這允許執行單一的位段的寫和讀操作。

下面的映射公式給出了別名區中的每個字是如何對應位帶區的相應位的：

bit_word_addr = bit_band_base + (byte_offset x 32) + (bit_number × 4)

其中：

− bit_word_addr 是別名存儲器區中字的地址，它映射到某個目標位。

− bit_band_base 是別名區的起始地址。

− byte_offset 是包含目標位的字節在位段里的序號

− bit_number 是目標位所在位置（0-31）

下面的例子說明如何映射別名區中SRAM 地址為0x20000300 的字節中的位2：

0x22006008 = 0x22000000 + (0x300*32) + (2*4).

對0x22006008 地址的寫操作和對SRAM 中地址0x20000300 字節的位2 執行讀-改-寫操作有著相同的效果。

讀0x22006008 地址返回SRAM 中地址0x20000300 字節的位2 的值(0x01 or 0x00)。
